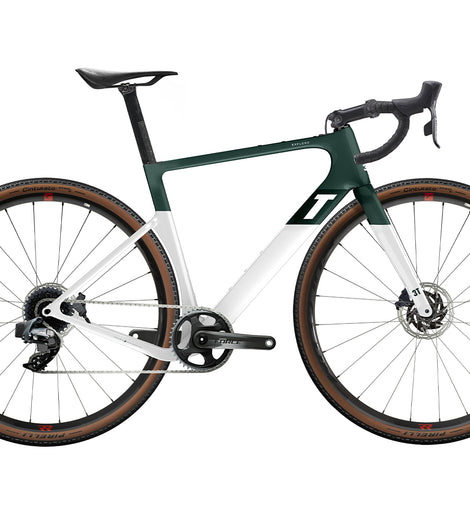

3T BIKE EXPLORO RACEMAX GRAVEL BIKE - EMERALD / WHITE - SRAM RIVAL AXS 2X12 700C
| Frame |
RaceMax 418
|
| Frame material |
Unidirectional pre-preg carbon, High-modulus/high-strength performance blend layup
|
| Fork |
Fango RaceMax w/ compact crown
|
| Headset |
3T Minimax IS42/28.6 + IS 47/38
|
| Thru-axle |
100x12 front - 142x12 rear
|
| Handlebar |
3T Aeroflux LTD bar (XXS: 38cm - 51: 40cm - 5&56: 42cm - 58&61: 44cm)
|
| Stem |
3T Apto Stealth (XXS:70mm - 51:80mm - 54: 90mm - 56:100mm - 58:110mm - 61:120mm)
|
| Front Derailleur | - |
| Rear Derailleur |
Sram Rival AXS XPLR Max 44T
|
| Shift/brake levers |
Sram Rival AXS
|
| Brakes |
Sram Rival AXS XPLR Hydraulic Disc w/ Sram 160mm rotor
|
| Crankset |
Sram Rival AXS Wide, 40T chainring (XXS: 165mm - 51: 170mm - 54&56: 172,5mm - 58&61: 175mm)
|
| Cassette |
12-speed Rival XPLR, 10-44T
|
| Wheelset |
Fulcrum Rapid Red 900, 700c, 22mm internal width, tubeless ready (upgrade to 3T Discus 45|40 , 45|32 , Plus i28 possible)
|
| Tires |
Pirelli Cinturato Gravel M 700c
|
| Seatpost |
3T Exploro seatpost for Ritchey clamp
|
| Saddle |
Selle Italia Model X Superflow
|
GEOMETRIES
| Size | XXS | 51 | 54 | 56 | 58 | 61 |
| Rider Height* (cm) | 145-160 | 157-171 | 168-180 | 176-186 | 183-195 | 192&Up |
| Rider Height* (inches) | 4’9”-5’3” | 5’2”-5’7” | 5’6”-5’11” | 5’9”-6’1” | 6’0”-6’5” | 6’3”&Up |
| Stack | 522 | 544 | 566 | 586 | 606 | 634 |
| Reach | 353 | 364 | 374 | 382 | 390 | 401 |
| Fork axle-crown | 375 | 375 | 375 | 375 | 375 | 375 |
| "Road" headtube** | 125 | 147 | 161 | 180 | 201 | 230 |
| Head angle | 68.7 | 69.2 | 70.7 | 71.7 | 72.2 | 72.2 |
| BB drop | 77 | 77 | 77 | 75 | 73 | 73 |
| Seat angle | 72.5 | 72.5 | 72.5 | 72.5 | 72.5 | 72.5 |
| Seattube length | 436 | 463 | 490 | 518 | 545 | 572 |
| Toptube length | 501 | 518 | 536 | 549 | 563 | 582 |
| Wheelbase | 1003 | 1018 | 1013 | 1019 | 1028 | 1048 |
| Front center | 597 | 612 | 607 | 612 | 622 | 642 |
| Rear center | 418 | 418 | 418 | 418 | 418 | 418 |
* Rider heights are approximations. For more accuracy, compare stack/reach with your current bike or visit your 3T retailer.
** RaceMax FORK length is equal to a standard road bike, so this HEADTUBE length can be compared to road bikes. To compare to gravel bikes with standard gravel forks, deduct 25mm from these “road" headtube lengths for a proper comparison.
