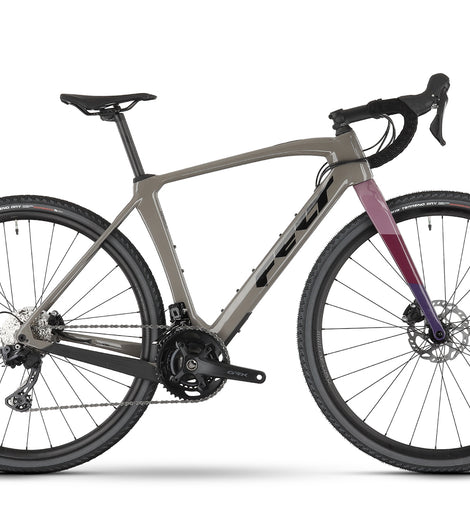

GRAVEL DONE RIGHT.

Get it done. The BREED CARBON with Shimano's workhorse GRX 610 group is set to go the distance on the gnarliest gravel tracks. With an optimal gear range and dependable mechanical shifting, this rig will get you to your goals. Paired with our trusted Devox wheelset, this BREED CARBON is outfitted for hard riding in varied conditions.

FRAMESET

• FRAMEFelt BREED 1.0, UHC Advanced carbon
• FORKFelt BREED 1.0, UHC Advanced carbon

BRAKES & DRIVETRAIN

• FRONT BRAKEShimano BR-RX400, 2-piston, Hydraulic disc brake
• FRONT BRAKE ROTORShimano SM-RT70, 160 mm, Center lock
• REAR BRAKEShimano BR-RX400, 2-piston, Hydraulic disc brake
• REAR BRAKE ROTORShimano SM-RT70, 140 mm, Center lock
• REAR DERAILLEURShimano GRX, RD-RX820, 24-S
• FRONT DERAILLEURShimano GRX, FD-RX820, Brazed-On
• CASSETTEShimano 105 CS-R7101, 11-34 T
• CHAINShimano CN-M7100
• CRANKSETShimano GRX, FC-RX610, 46/30 T
• SHIFT LEVERShimano GRX, ST-RX610

WHEELS

• WHEELSETDevox WheelRDS.A1, Tubeless ready, Center lock, 12x100/12x142 mm
• TIREVittoria Terreno Dry, 700x38

COCKPIT

• STEMDevox StemR.A1, -7 °
• HEADSETIS (NO.42)
• HANDLEBAR47, 47 cm: Devox DBar.A1 GXA 31.8 mm, 400 mm,
  51, 51 cm: Devox DBar.A1 GXA 31.8 mm, 420 mm,
  54, 54 cm: Devox DBar.A1 GXA 31.8 mm, 440 mm,
  56, 58, 61, 56, 58, 61 cm: Devox DBar.A1 GXA 31.8 mm, 460 mm
• BAR TAPEFelt VelvetGel tape with 3M reflective base and Felt Bubble-Tech F-Wing bar end plugs
• SADDLEPrologo Dimension NDR STN
• SEAT POST47, 51, 56, 58, 61, 47, 51, 56, 58, 61 cm: Devox Post.C2, 400 mm,
  54, 54 cm: Devox Post.C2, 350 mm

ADDITIONAL INFORMATION

• PERMISSIBLE TOTAL WEIGHT129kg
• TRAILER APPROVALNo trailer approval

SIZE GUIDE

	43	47	51	54	56	58	61
RIDER HEIGHT	144.7 - 152.4 cm 4’9” - 5’0”	152.4 - 167.6 cm 5’0” - 5’5”	167.6 - 172.7 cm 5’5” - 5’8”	172.7 - 177.8 cm 5’8” - 5’10”	177.8 - 182.8 cm 5’10” - 6’0”	182.8 - 187.9 cm 6’0” - 6’2”	187.9 - 195.5 cm 6’2” - 6’5”
RIDER INSEAM Measured from crotch to floor.	67.3 - 71.2 cm 26.5” - 28.0”	71.2 - 75.0 cm 28.0” - 29.5”	75.0 - 77.0 cm 29.5” - 30.3”	76.0 - 82.0 cm 29.9” - 32.3”	81.0 - 85.0 cm 31.9” - 33.5”	84.0 - 87.1 cm 33.1” - 34.3”	87.1 - 91.1 cm 34.3” - 35.9”

GEOMETRY

	47	51	54	56	58	61
(A) Top Tube Length	530 mm	540 mm	550 mm	570 mm	580 mm	600 mm
(B) Seat Tube Length	440 mm	470 mm	500 mm	530 mm	560 mm	595 mm
(C) Seat Tube Angle	74 °	74 °	74 °	73 °	73 °	72 °
(D) Head Tube Length	100 mm	116 mm	130 mm	145 mm	160 mm	180 mm
(E) Steering Angle	70 °	70.5 °	70.5 °	71 °	71.5 °	71.5 °
(G) Wheel Base	1023 mm	1029 mm	1040 mm	1045 mm	1050 mm	1060 mm
(H) Standover Height	716 mm	724 mm	770 mm	796 mm	823 mm	854 mm
(I) BB-Drop	72 mm	72 mm	72 mm	72 mm	72 mm	72 mm
(K) Fork Offset	50 mm	50 mm	50 mm	50 mm	50 mm	50 mm
(L) Stack	544 mm	562 mm	575 mm	591 mm	607 mm	626 mm
(M) Reach	374 mm	379 mm	385 mm	389 mm	394 mm	398 mm
(N) Stem Length	80 mm	-	100 mm	100 mm	110 mm	120 mm
(O) Crank Length	165 mm	-	172.5 mm	172.5 mm	175 mm	175 mm
