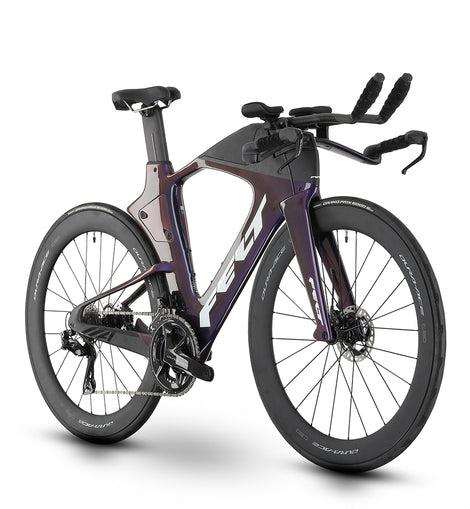

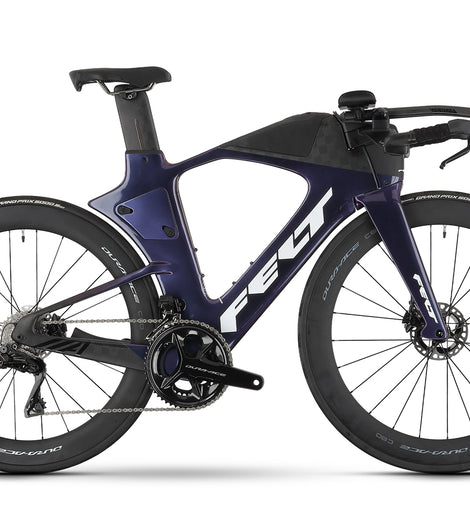

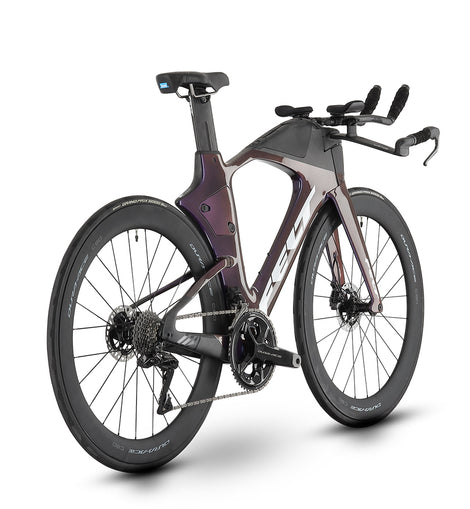

FELT IA FRD 2.0 ULTIMATE TRIATHLON BIKE - SHIMANO DURA ACE DI2 - NIGHTSHIFT

YOUR PR MACHINE IS HERE

The latest version of the IA 2.0 platform paired with Shimano's leading Dura-Ace Di2 group and aero wheelset. Shimano's 12-speed group offers the crisp shifting and the reliability for which Dura-Ace is known. Component updates bring wireless shifting and an easier approach to keeping the bike tidy without extra cables. A wide gear range is dialed for various training and race course profiles.

FRAMESET

FRAMEFelt IA 2.0, UHC Ultimate + TeXtreme carbon
FORKFelt IntegratedAero Disc 2.0, UHC Ultimate + TeXtreme carbon

BRAKES & DRIVETRAIN

FRONT BRAKEShimano BR-R9170, 2-piston, Hydraulic disc brake
FRONT BRAKE ROTORShimano RT-MT900, 140 mm, Center lock
REAR BRAKEShimano BR-R9170, 2-piston, Hydraulic disc brake
REAR BRAKE ROTORShimano RT-MT900, 140 mm, Center lock
BRAKE LEVERShimano Dura Ace Di2 ST-R9180
REAR DERAILLEURShimano Dura-Ace Di2, RD-R9250, 24-S
FRONT DERAILLEURShimano Dura-Ace Di2, FD-R9250
CASSETTEShimano Dura-Ace CS-R9200, 11-30 T
CHAINShimano CN-M9100
CRANKSETShimano Dura-Ace, FC-R9200, 52/36 T
SHIFT LEVERShimano Dura-Ace Di2, ST-R9180

WHEELS

WHEELSETShimano Dura-Ace, WH-R9270
TIREContinental Grand Prix 5000 TR, 700x25

COCKPIT

HEADSETIS (IS-2)
HANDLEBARAerobar-Stem-Combination: Felt Dagger Direct 2.0 ASC / Extensions: Devox Ergomod | carbon fiber
BAR TAPEFelt EVA arm pads with anti-microbial cover and Felt Gel tape
SADDLEISM PS1.0
SEAT POSTFelt Aero TRI IL 2.0 VM

ADDITIONAL INFORMATION

PERMISSIBLE TOTAL WEIGHT129kg
TRAILER APPROVALNo trailer approval

	47	48	51	54	56	58
RIDER HEIGHT	152.4 - 167.6 cm 5’0” - 5’5”	152.4 - 167.6 cm 5’0” - 5’5”	167.6 - 172.7 cm 5’5” - 5’8”	172.7 - 180.3 cm 5’8” - 5’11”	180.3 - 187.9 cm 5’11” - 6’2”	187.9 - 195.5 cm 6’2” - 6’5”
RIDER INSEAM Measured from crotch to floor.	70.8 - 74.4 cm 27.9” - 29.3”	70.8 - 74.4 cm 27.9” - 29.3”	74.4 - 77.9 cm 29.3” - 30.7”	77.9 - 83.0 cm 30.7” - 32.7”	83.0 - 85.8 cm 32.7” - 33.8”	85.8 - 88.9 cm 32.7” - 35.0”

	48	51	54	56	58
(A) Top Tube Length	468 mm	486 mm	510 mm	541 mm	573 mm
(B) Seat Tube Length	496 mm	525 mm	546 mm	571 mm	598 mm
(C) Seat Tube Angle	79.5 °	79 °	78.5 °	78 °	77.5 °
(D) Head Tube Length	67.5 mm	96 mm	111 mm	136 mm	163 mm
(E) Steering Angle	71.5 °	71.5 °	72 °	72 °	72 °
(F) Chain Stay Length	405 mm	405 mm	405 mm	405 mm	405 mm
(G) Wheel Base	970 mm	987 mm	1000 mm	1029 mm	1058 mm
(H) Standover Height	735 mm	749 mm	765 mm	779 mm	793 mm
(I) BB-Drop	72 mm	72 mm	72 mm	72 mm	72 mm
(K) Fork Offset	50 mm	50 mm	45 mm	45 mm	45 mm
(L) Stack	478 mm	505 mm	522 mm	546 mm	572 mm
(M) Reach	379 mm	387 mm	404 mm	425 mm	445 mm
(O) Crank Length	165 mm	165 mm	170 mm	170 mm	172.5 mm
