DESCRIPTION

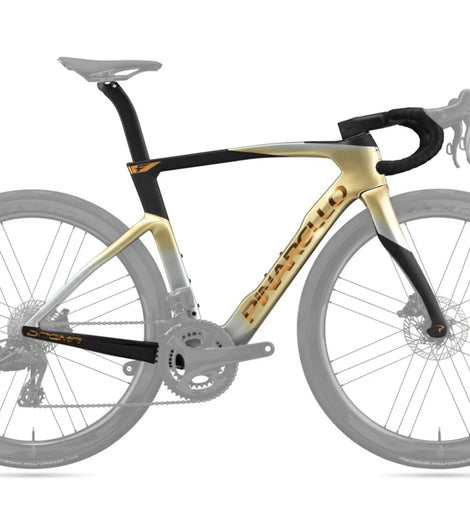

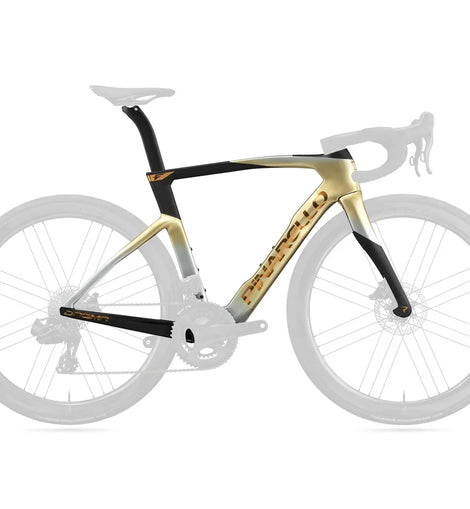

The Pinarello Dogma F ’27 is a high-performance road racing frameset designed for aerodynamic efficiency, stiffness, and precise handling. Constructed from TorayCa M40X carbon fiber, it features an aerodynamic frame profile, fully integrated cable routing, and the distinctive Onda carbon fork with ForkFlap technology. This frame kit includes a MOST Talon Ultra Fast 1K integrated carbon handlebar and stem in a 420 mm handlebar width and 110 mm stem length configuration, providing a premium foundation for a performance-focused road bike build.

FEATURES
TorayCa M40X high-performance carbon fiber construction
Aerodynamic frame design for reduced drag
Aero-Keel bottom bracket area for improved airflow
eTiCR fully integrated cable routing
Onda carbon fork with ForkFlap
47 mm fork rake
Integrated aerodynamic seatpost clamp
Italian-threaded bottom bracket
Flat-mount disc brake compatibility
12 × 100 mm front and 12 × 142 mm rear thru-axle standards
MOST Talon Ultra Fast 1K integrated carbon handlebar and stem included
420 mm handlebar width and 110 mm stem length
Designed for high-speed road racing
UCI-approved frame design

SPECIFICATION
Specification    Details
Brand    Pinarello
Model    Dogma F ’27
Product Code    FC196-39270
Product Type    Road Bike Frameset / Frame Kit
Model Year    2027
Color    Molten Sand
Color Code    J102 (matching colorway reference)
Frame Material    TorayCa M40X Carbon Fiber
Frame Size    530 mm
Included Handlebar and Stem    MOST Talon Ultra Fast 1K Integrated Carbon Cockpit
Handlebar Width    420 mm
Stem Length    110 mm
Fork    Pinarello Onda Carbon Fork with ForkFlap
Fork Rake    47 mm
Cable Routing    Fully Integrated eTiCR
Bottom Bracket Standard    Italian Threaded
Brake Type    Disc Brake
Front Axle    12 × 100 mm
Rear Axle    12 × 142 mm
Seatpost    Pinarello Aerodynamic Carbon Seatpost
Seatpost Clamp    Integrated
Maximum Tire Clearance    Up to 30 mm (matching 2027 model reference)
